Block & Tail

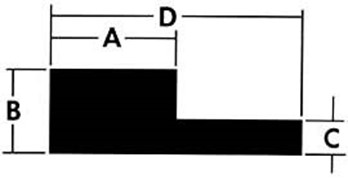

A-Block x B-Thickness x C-Tail x D-Overall Width to Compound. Identify seal as a fully molded or extruded profile. Fully molded seals have a much tighter dimensional tolerance than extruded profiles. Include material requirements.

A

B

C

D

1-1/4"

3/4"

1/4"

2-3/4"

1-1/4"

1-1/8"

1/2"

2-3/4"

1-1/4"

1-1/4"

1/2"

2-3/4"

1-1/4"

1-1/4"

5/8"

2-3/4"



Custom dimensions are available upon request.
