Block & Tail with Tail Chamfer 1

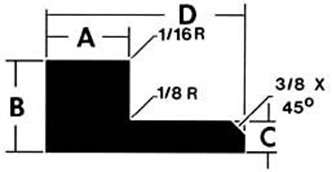

A-Block x B-Thickness x C-Tail x D-Overall Width to Compound. Identify seal as a fully molded or extruded profile. Fully molded seals have a much tighter dimensional tolerance than extruded profiles. Include material requirements.

ABCD
2-1/2″1-3/4″3/4″5-1/2″
2-1/2″2-1/2″1″5″
2-1/2″2-3/4″7/8″6″

Custom dimensions are available upon request.
