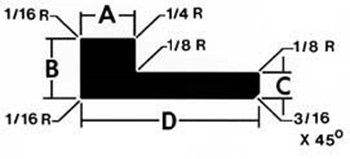

Block & Tail with Tail Chamfer 2
A-Block x B-Thickness x C-Tail x D-Overall Width to Compound. Identify seal as a fully molded or extruded profile. Fully molded seals have a much tighter dimensional tolerance than extruded profiles. Include material requirements.
A | B | C | D |
1-1/2″ | 1-3/4″ | 3/4″ | 5″ |
1-3/4″ | 1-3/4″ | 9/16″ | 6″ |
Custom dimensions are available upon request.
