Center Dome Seal — Flat 90⁰ Corner

Center Dome Seal — Flat 90⁰ Corner

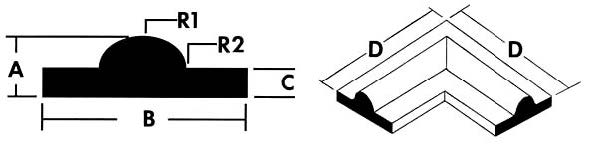

A-Height x B-Width x C-Tail x D-Legs x R1-Dome Radius x R2-Radius. Identify seal as a fully molded or extruded profile. Fully molded seals have a much tighter dimensional tolerance than extruded profiles. Include material requirements. Specify cladding thickness and degree of coverage as required. Hollow sections in the base or core can be applied to this profile. Specify opening size, placement, and configuration.

ABCDR1R2
1-3/8″7-1/2″1/2″18″2-1/4″1/4″
1-3/8″7-1/2″**5/8″18″2-1/4″1/8″
1-1/2″7-1/2″**5/8″18″2-1/4″1/4″
1-1/2″7-1/2″**3/4″18″2-1/2″1/4″
1-3/”8″**9/16″20″7/8″3/8″
2″3″3/4″18″1-11/16″1/4″
2″8″**3/4″20″1-1/4″1/8″
2″8″**7/8″20″1″3/16″
2-1/4″7″**3/4″18″1-1/8″1/4″
2-1/4″7″**1″18″1-1/8″1/4″
2-1/2″5-1/4″1-1/4″16″1-1/4″1/8″
2-1/2″7″**3/4″18″2-1/2″1/8″
XXXXXXXXXXXX

XX = Custom/Required Size
** Can be made smaller
