L-Type 3545/6404

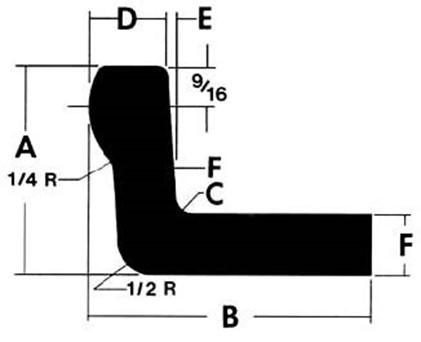

A-Arc Height x B-Overall Length x C-Radius x D-Thickness x E-Taper x F-Tail Thickness to Compound. Identify seal as a fully molded or extruded profile. Fully molded seals have a much tighter dimensional tolerance than extruded profiles. Include material requirements. Specify cladding thickness and degree of coverage as required.
A |
B |
C |
D |
E |
F |
3" |
4-5/16" |
1/4" |
1-3/16" |
1/8" |
7/8" |
3" |
4-3/4" |
1/4" |
1-3/16" |
1/8" |
7/8" |
3" |
4-3/4" |
9/32" |
1-7/32" |
3/4" |
7/8" |
Custom dimensions are available upon request.
