Vertical 90⁰ Corner

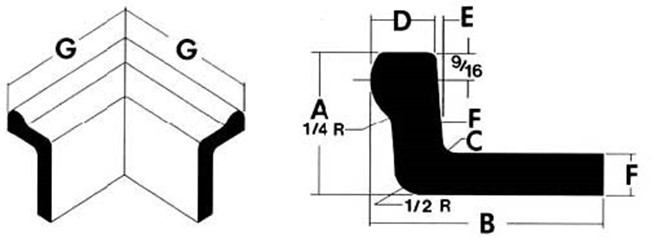

A-Arc Height x B-Overall Length x C-Radius x D-Thickness x E-Taper x F-Tail Thickness x G-Leg Length. Identify seal as a fully molded or extruded profile. Fully molded seals have a much tighter dimensional tolerance than extruded profiles. Include material requirements. Specify cladding thickness and degree of coverage as required.
A | B | C | D | E | F | G |
3″ | 4-15/16″ | 1/4″ | 1-3/16″ | 1/8″ | 7/8″ | 15″ |
3″ | 4-3/4″ | 1/4″ | 1-3/16″ | 1/8″ | 7/8″ | 15″ |
3″ | 4-3/4″ | 9/32″ | 1-7/32″ | 3/4″ | 7/8″ | 15″ |
Custom dimensions are available upon request.
