Innovative Material Handling
Mills, smelters and foundries have been proving grounds for our heavyweight Durowall belts, with the thousands of corrugated sidewall belts in use today as evidence they work hard and tough. Supported by experienced and skilled teams – including manufacturing, engineering, field services, product specialists and a nationwide salesforce – we work with customers to find the right solutions for their heavy-duty applications.
Popular heavyweight sidewall conveyor belt applications include:
- Mining and cement
- Power generation
- Wastewater treatment
- Recycling
- Tunneling
- Steel manufacturing
Have an application where you need something more food grade approved? Find out more about our light duty corrugated sidewall conveyor belts »
Fabrication Options
Types
Whether your corrugated sidewall project is new or existing, horizontal or vertical, Mi Conveyance Solutions will find the right combination of sidewall, cleats and belting needed for your application. We offer two types of sidewall belting: conventional and hot vulcanized.
Request a Quote
- Conventional:
- State-of-the-art hydraulic presses apply consistent and uniform pressure to ensure high adhesion levels between corrugated sidewall bases and belt covers
- Automated precision buffing machines grind sidewalls and belt covers to maximize component bond strengths
- Experienced technicians fabricate every belt to ISO standards
- Hot Bonded
- Ideal for applications where a higher level of sidewall adhesion is required
- High-temperature environments
- Side-loading conveyors where material impacts sidewall first
- Hard-to-access conveyors where elevated adhesion values serve as an economical insurance policy
- Ideal for applications where a higher level of sidewall adhesion is required
Cross-Rigid Base Belting
Cross-rigid base belting helps deliver material in an efficient, cost-effective manner for applications that may challenge standard belts. That means a more efficient system without the worry of belt failure or downtime.
*Available rubber compounds: oil resistant, heat resistant, static conductive, MSHA approved and black standard
- Eliminates belt bowing and cupping at the upturn and reduce sag on the return
- Provides lateral stiffness while retaining longitudinal flexibility
- Operates on standard pulleys without interfering with the conveyor structure
 |
 |
 |
 |
| Conventional Belting Carrying Side | Conventional Belting Return | Cross-Rigid Belting Carrying Side | Cross-Rigid Belting Return |
| Style | Total Plies | Tension Plies | Rating (piw) | Cross-Rigid Plies | Covers | Weight (piw) | Overall Gauge | Min. Pulley | Color/Compound |
|---|---|---|---|---|---|---|---|---|---|
| AXB 150 | 3 | 2 | 150 | 1 | 1/16" x Bare MOR | 0.140 | 0.25 | 4" | Black/Rubber |
| AXB 220 | 4 | 2 | 220 | 2 | 1/8" x 1/16"* | 0.295 | 0.465 | 14" | Black/Rubber |
| AXB 225 | 3 | 1 | 225 | 2 | 1/8" x Bare MOR | 0.160 | 0.25 | 8" | Black/Rubber |
| AXB 330 | 5 | 3 | 330 | 2 | 1/8" x 1/16"* | 0.325 | 0.51 | 16" | Black/Rubber |
| AXB 440 | 6 | 4 | 440 | 2 | 3/16" x 1/16"* | 0.360 | 0.605 | 24" | Black/Rubber |
| AXB 550 | 7 | 5 | 550 | 2 | 3/16" x 1/16"* | 0.400 | 0.7 | 30" | Black/Rubber |
Sizing
All heavyweight corrugated sidewalls are made of high-tensile natural rubber for added flexibility and toughness to withstand cutting, tearing and abrasion.
- Available in 1" to 12" heights
- Manufactured in various compounds, including high temperature, oil resistant, black standard, MSHA, PVC and polyurethane
- Fabric reinforcement available for greater than 6" tall sidewall for added strength and tear resistance
 |
 |
 |
Corrugated Sidewall
| Height (H) | Base Width (BW) | Pitch (P) | Weight (per ft/lbs) | Cleat Height | D1 (Min. Pulley) | D2 (Min. Deflection) |
|---|---|---|---|---|---|---|
| 1" | 1-1/2" | 1" | 0.30 | - | 2" | 8" |
| 1-1/2" | 1-1/2" | 1" | 0.45 | 1" | 3" | 8" |
| 2" | 1-1/2" | 1" | 0.60 | 1-1/2" | 3" | 8" |
| 2" | 2" | 1-5/8" | 0.80 | 1-1/2" | 6" | 10" |
| 2-1/2" | 2" | 1-5/8" | 0.95 | 2" | 6" | 12" |
| 3" | 2" | 1-5/8" | 1.10 | 2-1/2" | 8" | 16" |
| 4" | 2" | 1-5/8" | 1.40 | 3-1/2" | 10" | 18" |
| 5" | 2" | 1-5/8" | 1.75 | 4-1/2" | 12" | 20" |
| 6" | 2" | 1-5/8" | 2.20 | 5-1/2" | 14" | 24" |
Fabric-Reinforced Corrugated Sidewall
| Height (H) | Base Width (BW) | Pitch (P) | Weight (per ft/lbs) | Cleat Height | D1 (Min. Pulley) | D2 (Min. Deflection) |
|---|---|---|---|---|---|---|
| 6" | 3" | 2-13/32" | 3.0 | 5-1/2" | 14" | 24" |
| 8" | 3" | 2-13/32" | 4.3 | 7" | 16" | 32" |
| 10" | 3" | 2-13/32" | 5.5 | 9" | 20" | 40" |
| 12" | 3" | 2-13/32" | 6.8 | 11" | 24" | 48" |
Cleating
Our Durowall belts were designed to allow for a variety of cleating styles to meet the needs of many applications. Cleats are bonded to the belt using hydraulic presses to ensure uniform pressure is applied during the bonding process. Taller cleats are bolted to the sidewalls to reinforce "pocket" strength.
Cleat styles for heavyweight sidewall belts include:
T-Cleat
| Cleat Height | 1" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 6" |
| Min. Pulley (D1) | 4" | 5" | 6" | 8" | 10" | 14" | 14" | 18" | 19" |
C-Cleat (Scoop Cleat)
| Cleat Height | 2" | 1-1/2" | 3" | 3-1/2" | 4" | 4-1/2" |
| Min. Pulley (D1) | 6" | 8" | 8" | 10" | 14" | 14" |
S-Cleat
| Cleat Height | 3" | 3-1/2" | 4" | 4-1/2" | 5" | 5-1/2" | 7" | 9" |
| Min. Pulley (D1) | 8" | 11" | 12" | 12" | 16" | 16" | 16" | 20" |
Bolted Cleat (S- or T-) Style Paddle
| Cleat Height | 4-1/2" | 5" | 5-1/2" | 6" | 7" | 9" |
| Min. Pulley (D1) | 14" | 14" | 14" | 14" | 14" | 14" |
Resources - Durowall™ Corrugated Sidewall solutions
PDF
Conveyance Solutions Capabilities Brochure
Every day you depend on conveyor belting, hose, gaskets and seals to keep business moving forward. Learn more about our conveyance solutions, capabilities and services.
PDF
Conveyor Belt Specialists
Find your closest Mi Conveyance Solutions belting specialist with our belting specialist territory map.
PDF

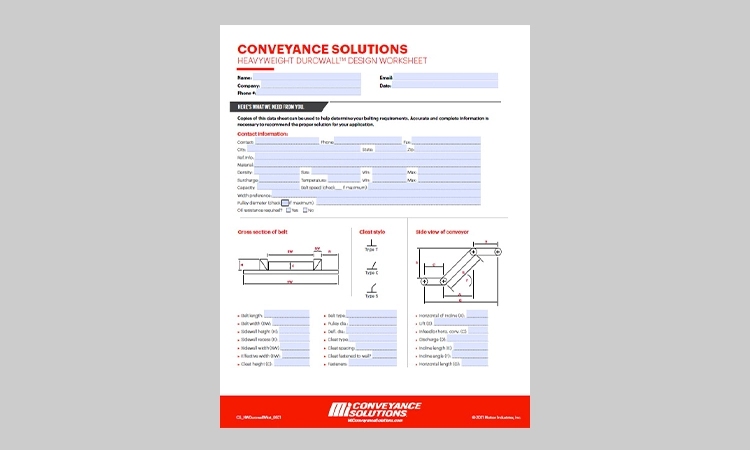

Heavyweight Durowall™ Design Worksheet
Use this to ensure your heavyweight belt is fabricated with a proper sidewall.
