Live Roller Belt
Upgrade your live BELT-driven Roller Conveyors
Motion's exclusive RedDrive® belting was built to improve the OEM design for roller-driven conveyor belts. Available in two sizes – RedDrive® 45 and RedDrive® 77.
We understand belt failure happens. Designed to optimize uptime, Motion offers the best of both worlds with our RedDrive® belt and splicing system and our ability to supply the OEM LRB-77 product exclusively. When downtime minutes count, Motion Conveyance Solutions offers a belt-driven roller conveyor belt that delivers longer life and a dramatically improved splicing process. You’ll be up and running again in 80% less time when you partner with us.
The RedDrive® complete solution includes:
- Increased belt life
- 10–15% stronger belt
- 25% less tension drive
- 70% reduced splicing time
- Increased splice strength by 30–40%
- RedDrive® splice training
- Up and running in 80% less time
- 15% more competitive than OEM product
- Cut and prepared same as existing material
Popular live roller belt applications include:
- Distribution centers
- Warehouses
- Fulfillment centers
- Cross-dock facilities
- Delivery centers
- And more!
The LRB-77 conveyor belt features:
- Original OEM specification
- Use on long-length and high-speed roller conveyors within distribution centers
- Abrasion-resistant polyurethane body offers clean running systems without accumulation of debris
LET'S KEEP YOU IN MOTION
Better. Faster. Stronger.
RedDrive® 45
RedDrive 45 was developed to replace the commonly used blue belt. With increased strength and a harder surface, RedDrive 45 boasts a 30% longer life span for the same application as the blue drive belt. Our improved belt can be spliced with existing equipment or can be equipped with a 120 mm long splice for ease of installation.
- Improved design of the blue drive belt
- Fabric material reduces fray and overall stringing in mistracking issues
- Lower-durometer TPU provides more flexibility to last longer
- Lower-durometer TPU increases the grip on the drive and roller and reduces overall drive tension
- Comes in easy-to-manage rolls of 656 ft.
RedDrive® 77
Kevlar™ technology, combined with a more durable TPU compound delivers a stronger, lighter belt. Exclusive to Motion, this belt delivers an easier splice, is less noisy, and is 30-40% more durable than the OEM product.
- Built to improve the OEM design
- Combines an improved Cord technology with a more durable TPU compound
- Delivers a 10-15% stronger belt
- Requires 25% less tension to drive
- Lighter construction reduces roller noise
- Results in an increased splice strength by 30-40% when used with a system belt cutter and press
- Comes in an easy-to-use spool of 1200 ft.

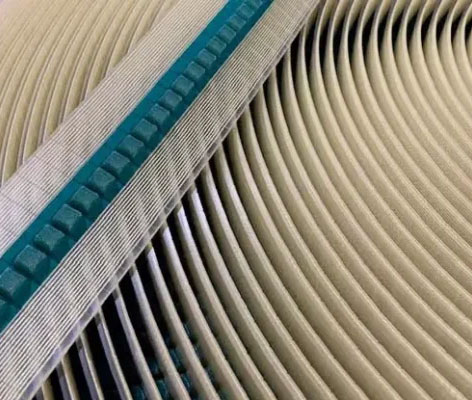

LRB-77
The LRB-77 belt was designed in collaboration with the OEM and has a proven record of excellent performance for nearly a decade. It is now available for your maintenance and replacement needs from Gates TPU. The integrated v-guide on the LRB-77 belt is designed specifically for the OEM’s pressure roller groove ensuring an accurate fit and proper belt tracking.
- Gates OEM Product
- Branded lay line for authenticity
- Date code for quality assurance
- Abrasion resistant polyurethane provides proper drive force to carrier rollers along with long belt life
- Aramid tensile members maintain proper tension and provide long belt life
- V-guide geometry is designed for OEM pressure rollers ensuring proper belt tracking
- Available in reel lengths of 600 or 1200ft

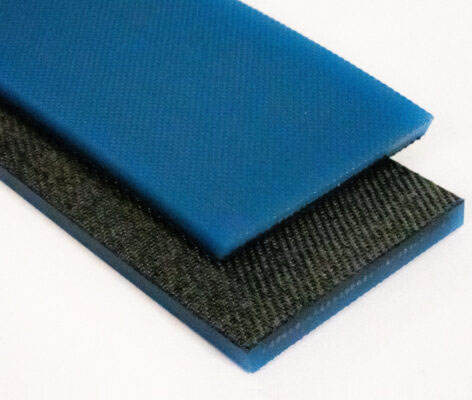

LVR-60
This OEM belt is extruded at 45mm wide. It is reinforced with Aramid cords (Kevlar) to increase the strength of the belt while also providing the flexibility that is required on live roller conveyors or narrow belt sorter systems. The belt is Anitstatic with a Blue TPU top cover and fabric bottom surface. This belt is easy to finger cut and splice in the field with the Flexco NDX cutter and Aeropress.
- Original OEM 45mm Live Roller Belt Specification
- Used on roller conveyor system and narrow belt sorters within distribution centers
- Aramid Cord construction for enhanced strength and durability while maintaining excellent flexibility
- Built to withstand rigorous environment and high speed sorting and conveyor applications

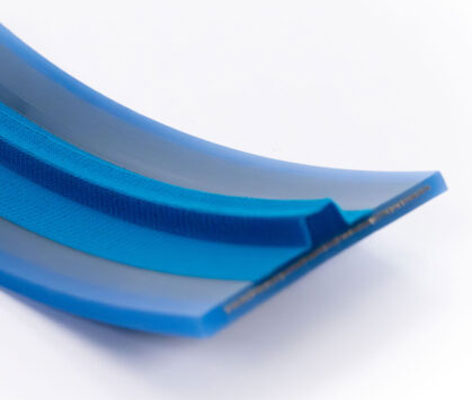

LVRQ-70
This OEM belt is extruded at 70mm wide with an integrated V-Guide that is protected with a nylon covering which helps extend the life of the belt. It is reinforced with Aramid (Kevlar) cords to increase the strength of the belt while providing the flexibility that is required on live roller conveyor systems. The belt is Antistatic with a blue TPU top cover and fabric bottom surface with integrated V-Guide. This belt is east to finger cut and splice in the field with the Flexco NDX cutter and Aeropress.
- Original OEM 70mm Live Roller Belt Specification
- Features an integrated V-Guide which is covered with nylon for increased durability
- Aramid Cord construction for enhanced strength and durability while maintaining excellent flexibility
- Built to withstand rigorous environment and high speed sorting and conveyor applications
PRODUCTS USED WITH LIVE ROLLER BELTS

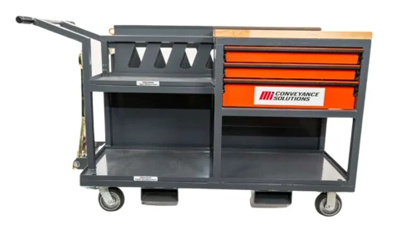

Novitool Workstation
This Workstation is designed entirely to support the splicing equipment for roller drive belt applications, it will hold all the components needed to complete a splice-including the belt, equipment and additional items.
- Will hold up to 52" diameter roll of belt
- Will allow you to dispense the belt from the unit
- Adjustable back plate to keep belt roll aligned
- Drawers to hold each Silicone template
- Locking front and rear brakes
- Strong tabletop to support all splicing functions
Shop Novitool RedDrive® Workstation Only >>
NDX Belt Cutter
The preparation of belt ends are a critical part of the splicing step. This process is made easy by using Flexco's NDX cutters.
- Delivers precision with every cut
- Fully automatic indexing for easy and accurate preparation
- Automatically moves forward with every crank of the handle
- Prepare belt ends in 3-5 minutes
- Results in a clean, uniform and precision finger, ensuring splice success
- Available in two styles to match the correct belt for an optimized splice length
AERO 325 Belt Press
Splicing belts for a roller-driven conveyor creates a greater challenge than conventional conveyor belting applications. However, the Flexco® Aero 325 press greatly improves finger splicing with its automated design.
- Arrives pre-programmed to cook belts
- Eliminates setup and enhances splice results
- Runs on 110 V power
- Quickly cycles up to temperature
- Cooled by air
- Reduces splice times by over 70-75%
- 17-22 minute cycle time for RedDrive® 45 press
- 18-22 minute cycle time for RedDrive 77® press
Shop with RedDrive® 45 >>
Shop with RedDrive® 77 >>
Run into a slow heat alert? Check out 2 Ways to Fix the Slow Heat Alert on Your Aero 325 Press to make sure you're using the right extension cord and power cord to run your press.
Novitool RedDrive® Workstation Fully Loaded
This fully loaded workstation has everything you need to support the splicing equipment for roller drive belt applications, it holds all the components needed to complete a splice-including the belt, equipment and additional items.
- Includes NDX Belt Cutter
- Includes Aero 325 Belt Press
- Silicone templates for RedDrive 77 or 45
- Nylon Punch Pad
- Extension Cord
- Extra 3 pack of cutting blades
- Optional portable generator for easy power access
LIGHTWEIGHT BELTING
CUSTOM FABRICATION & VALUE-ADDED SERVICES
RedDrive® 45 Training Video
RedDrive 45 was developed to replace the commonly used blue belt. With increased strength and a harder surface, RedDrive 45 boasts a 30% longer life for the same application as the blue drive belt. Our improved belt can be spliced with existing equipment or can be equipped with a 120 mm long splice for ease of installation.
- Aggregate & Mining
- Improved design of the blue drive belt
- Fabric material reduces fray and overall stringing in mis tracking issues
- Lower-durometer TPU provides more flexibility to last longer
- Lower-durometer TPU increases the grip on the drive and roller and reduces overall drive tension
- Comes in easy-to-manage rolls of 656 ft.
RedDrive® 77 Training Video
Kevlar™ technology, combined with a more durable TPU compound delivers a stronger, lighter belt. Exclusive to Motion Conveyance Solutions, this belt delivers an easier splice, is less noisy and is 30-40% more durable than the OEM product.
- Aggregate & Mining
- Built to improve the OEM design
- Combines an improved Cord technology with a durable TPU compound
- Delivers a 10-15% stronger belt
- Requires 25% less tension to drive
- Lighter construction reduces roller noise
- Results in an increased splice strength by 30-40% when used with system belt cutter and press
- Comes in an easy-to-use spool of 1200 ft.
